Since 1989
JSSM is one of the leading coil centres in Malaysia, established in 1989. With about 30 years of experience in manufacturing slit coils, cut sheets, lamination motor cores, and being part of the well-established trading division of JFE Holdings from Japan, we are a reliable steel product supplier. Our skilled workforce, strong management direction, and quality management system have enabled us to continuously progress. In the past 2 years, we have expanded our business to include the production and assembly of cut cores for transformers. Additionally, having multiple raw material suppliers allows us to meet customer demands effectively.
We slit coil to different width to meet customer requirements

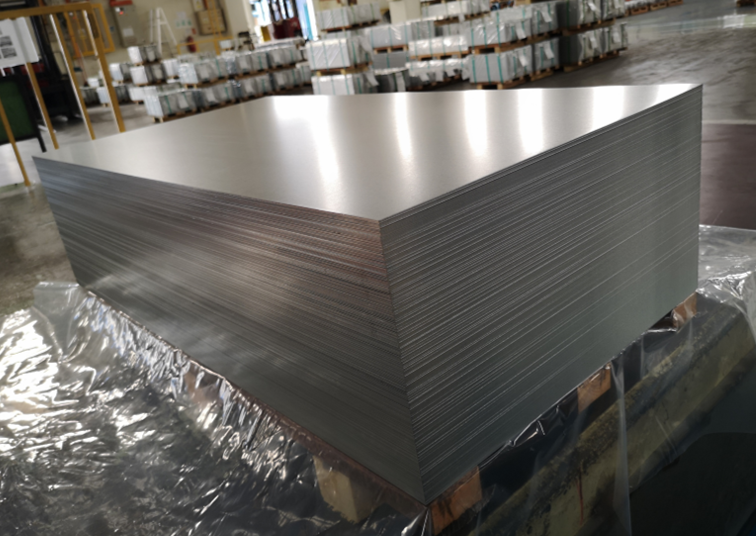

We produce cut sheet based on customer requirements

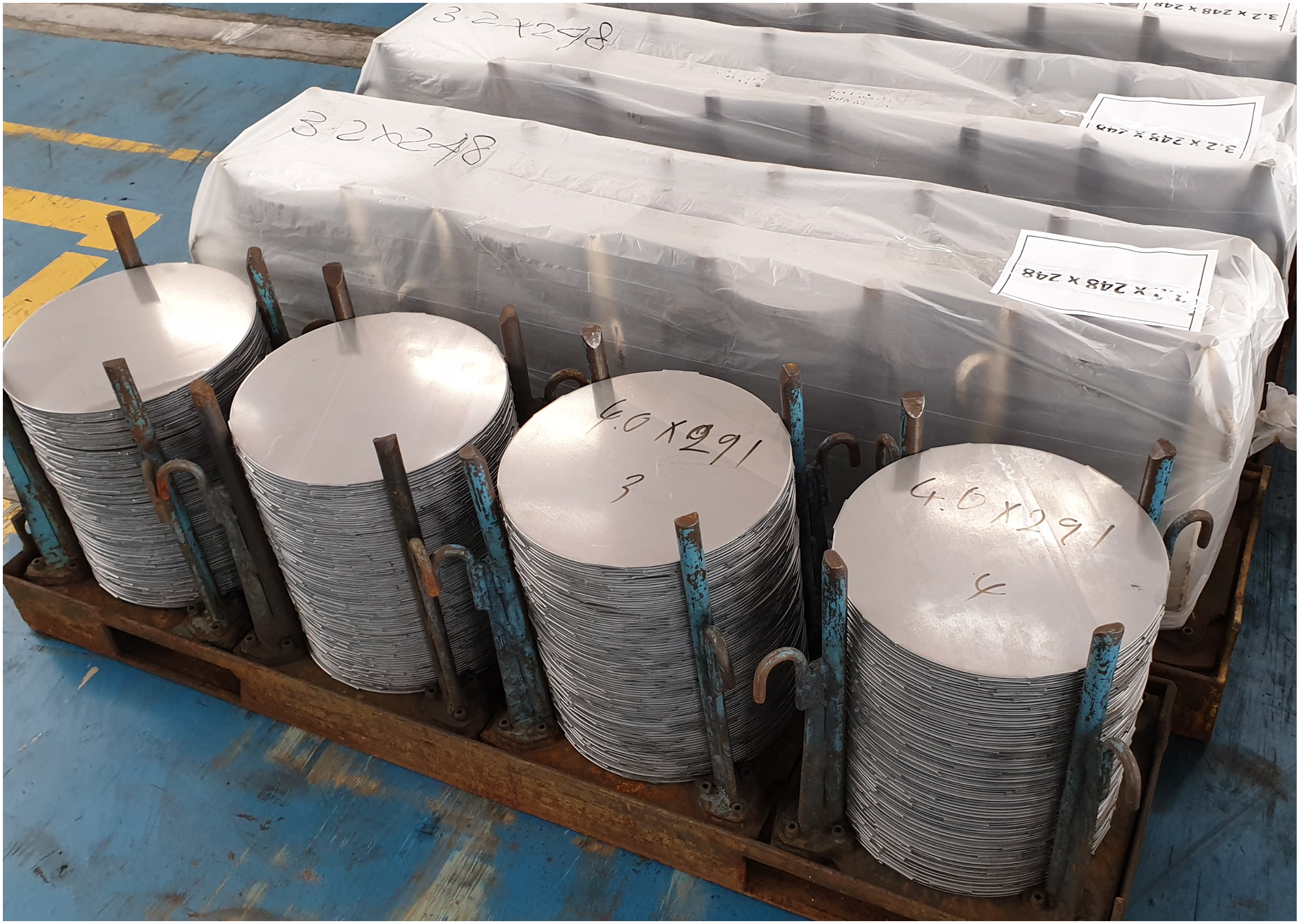

We produce blanked part based on customer requirements

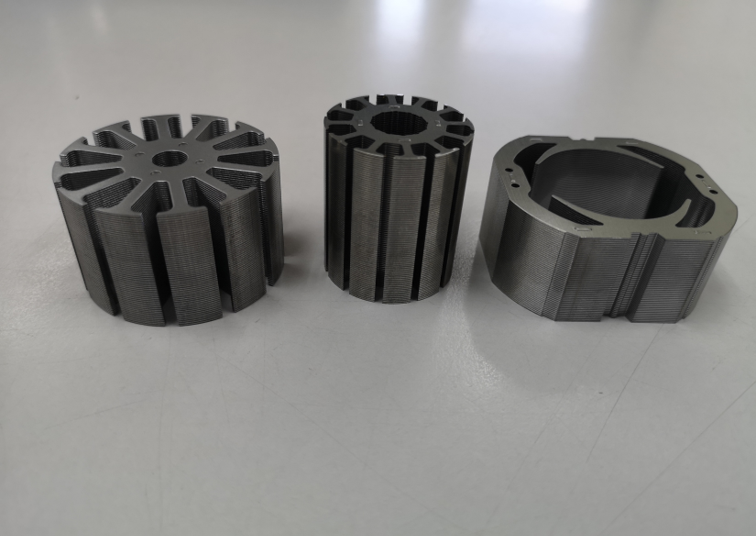

We produce rotor and stator core

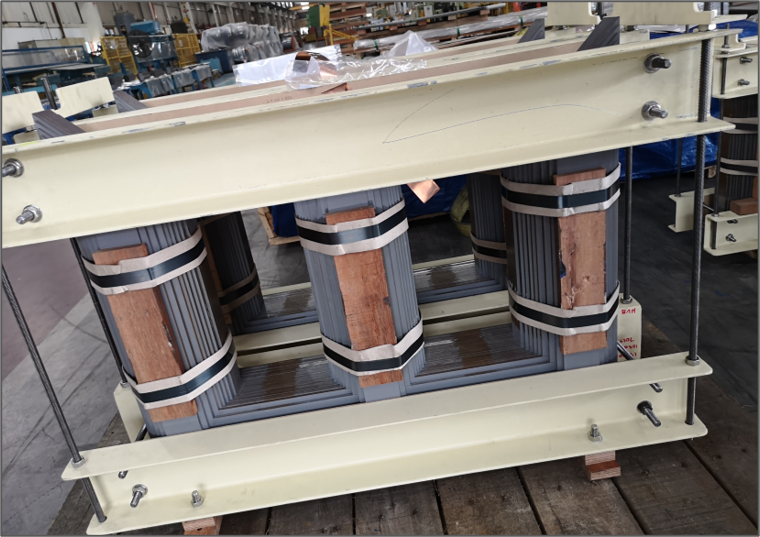

We produce cut core, semi-finished product used in electrical transformer
SERVICES | PRODUCTS | FACILITIES | |||
---|---|---|---|---|---|
SLITTING | Slit Coils | EQUIPMENT | THICKNESS | MAX WIDTH | MAX WEIGHT |
SLITTER MACHINES | 0.18mm - 3.6mm | 1360mm | 10MT | ||
SHEARING | Cut Sheets | SHEAR MACHINES | 0.3mm - 2.3mm | 1275mm | 10 MT |
BLANKING | Blanked Parts | 500T BLANKING PRESS | 1.2mm - 4.5mm | 1450mm | 15MT |
CUT CORE | Cut Core | CUT CORE LINE | 0.23mm - 0.35mm | 600mm | 3MT |
CUT CORE ASSEMBLY TABLE | - | 1800mm x 2120mm | 5MT | ||
PUNCHING | Rotor & Stator Core | EQUIPMENT | SPM | DIE HEIGHT | CAPACITY |
MOTOR CORE | 200 - 250 | 410mm | 125MT |
We are subsidiary of JFE Shoji Corporation which is one of the JFE Holding Companies.
